Purpose-built 1500V BMS controller for utility-scale energy storage. Ethernet connectivity, parallel string support, and always-on operation for grid-grade battery management.

REQUEST SPECIFICATION

Home › BMS Controllers › SBS Stationary

DESIGN PHILOSOPHY

DESIGNED FOR THE GRID

The SBS Stationary is designed from the ground up for 1500V BESS with parallel string support, always-on duty cycles, and grid-grade communication.

HV-based voltage measurement for multi-string isolation and Ethernet connectivity for modern energy management systems.

SBS STATIONARY INTEGRATION ADVANTAGES

1500 V NATIVE DESIGN

5.4kV withstand and aged 10kV surge test

Lightning icon, representing high voltage

GRID-GRADE COMMUNICATION

Sunspec/Modbus via TCP/IP over Ethernet + CAN FD

ALWAYS-ON OPERATION

SOC and Balancing optimized for grid duty cycles

Icon of a clock, representing Munich Electrifications speed in development and fast time-to-market

FULL-STACK READY

Interoperable with ME's Layer-3 Container Controller and Battery-in-the-Cloud analytics platform.

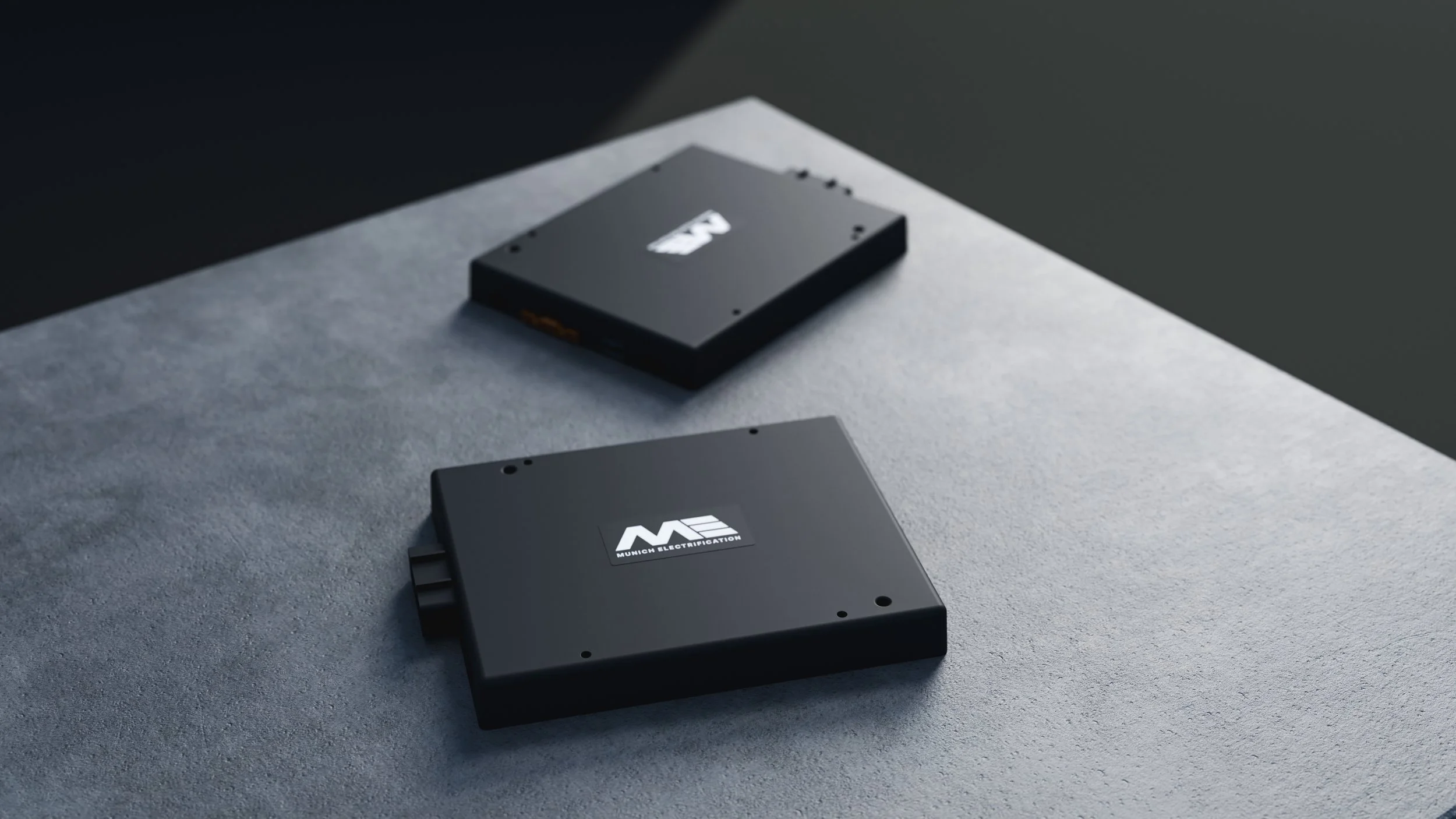

Picture of the SBS for BESS for up to 1500V applications of Munich Electrification

PRODUCT FLYER

SOFTWARE & PLATFORM

BARCELONA PLATFORM

The SBS Stationary is the grid-optimized member of ME's 3rd-generation Barcelona BMS platform, sharing a common architecture and software stack with SBS Core, SBS High, and BMDU. All SBS controllers support multistring configurations.

All four Barcelona variants run the identical SBS Software Platform. One software image supports every variant, switchable at runtime via the Configuration Framework. This means SBS Core benefits from the same validated, ASIL D-capable hardware on a stationary route.

Compatible with CMBXX cell monitoring board family, supporting arrays of over 500 cells per controller over 1500V-isolated isoSPI.

ONE CODEBASE, ALL VARIANTS
Same source tree builds SBS Core, SBS High, BMDU, and SBS Stationary. The Configuration Framework switches behavior at runtime.
STATIONARY-GRADE CERTIFICATIONS
Functional safety certified with ISO 13849-1 Category 2, PL d, with UL 1973 and UL 9540 compliance designed in. UL 5500:2023 certified for secure remote software updates and EU Cyber Resilience Act (CRA) compliance prepared.

BARCELONA PLATFORM FAMILY

SBS CORE

Compact controller, side connectors, external shunt

SBS HIGH

Full-featured controller, integrated shunt, 7 contactor drivers

BMDU

Integrated controller + power distribution with circuit breaker

SBS STATIONARY

1500V BESS-optimized with Ethernet

SHARED SOFTWARE: All four variants run the same C++ software stack. One codebase, one safety case, one release cadence. All variants support multistring configurations.

System Icon, with a plus in the upper right corner, symbolizing the adaptability of Munich Electrifications BMS and Software solutions


                        Parameter
                        Value

                        MCU
                        Automotive multicore processor with lockstepping (3 cores @ 300 MHz)

                        Operating Voltage
                        Up to 1500V, reinforced insulated

                        HV Measurements
                        4 channels (2 generic + 2 pack)

                        Current Sensing
                        2x Redundant Shunt Measurements or External Sensor with CAN, ±2,000 A

                        Isolation Monitoring
                        Passive, >100 MΩ insulation resistance

                        CAN
                        2x CAN FD (up to 5 Mbit/s)

                        Ethernet
                        1000BASE-TX Dual-Pair

                                              Balancing
                        Active or Passive

                                              SoC
                        <2%

                        Max Cell Count
                        >500 Cells

                        Operating Temperature
                        -40 to 85°C

                        HVIL
                        1x High voltage interlock

                        Contactor Drivers
                        4x Standard, 1x PWM Based

Functional Safety
Cell monitoring PL D
Isolation monitoring PL d
Current monitoring (PL d) Certified
Cybersecurity
Secure Boot
Secure Update
Secure Access
HSM
JTAG Lock

Parameter	Value
MCU	Automotive multicore processor with lockstepping (3 cores @ 300 MHz)
Operating Voltage	Up to 1500V, reinforced insulated
HV Measurements	4 channels (2 generic + 2 pack)
Current Sensing	2x Redundant Shunt Measurements or External Sensor with CAN, ±2,000 A
Isolation Monitoring	Passive, >100 MΩ insulation resistance
CAN	2x CAN FD (up to 5 Mbit/s)
Ethernet	1000BASE-TX Dual-Pair
Balancing	Active or Passive
SoC	<2%
Max Cell Count	>500 Cells
Operating Temperature	-40 to 85°C
HVIL	1x High voltage interlock
Contactor Drivers	4x Standard, 1x PWM Based

TECHNICAL SPECIFICATIONS

FULL SPEC SHEET

APPLICATIONS

BUILD FOR ENERGY STORAGE

UTILITY-SCALE BESS

Front-of-meter installations for grid stability, frequency regulation, and renewable integration. On-device SoX algorithms and Battery-in-the-Cloud analytics extend pack lifetime across decade-long grid duty cycles.

COMMERCIAL AND INDUSTRIAL STORAGE

Behind-the-meter for peak shaving, demand response, backup power. Ethernet integrates directly with building/energy management systems.

READY FOR GRID-GRADE BATTERY MANAGEMENT?

Get in touch with our team to learn how SBS Stationary fits your energy storage deployment.
