SBS CORE

Cost-optimized, small-footprint BMS controller with core functionality, ASIL B thermal event detection, side-mounted connectors, and flexible current sensing.

BATTERY MANAGMENT SYSTEMS

Line with a gradient from orange to blue, used as a graphic and visual divider
REQUEST SPECIFICATION
REQUEST SPECIFICATION

DESIGN PHILOSOPHY

ADAPTS TO YOUR ARCHITECTURE

SBS Core gives pack designers flexible current sensor placement, vibration-resistant side connections, and integrated safety sensing — all in a compact form factor that simplifies pack design.

Whether the application calls for optimized busbar routing, multi-module topologies, or minimal component count, SBS Core's architecture supports it without compromise.

Line with a gradient from orange to blue, used as a graphic and visual divider
Connector Icon

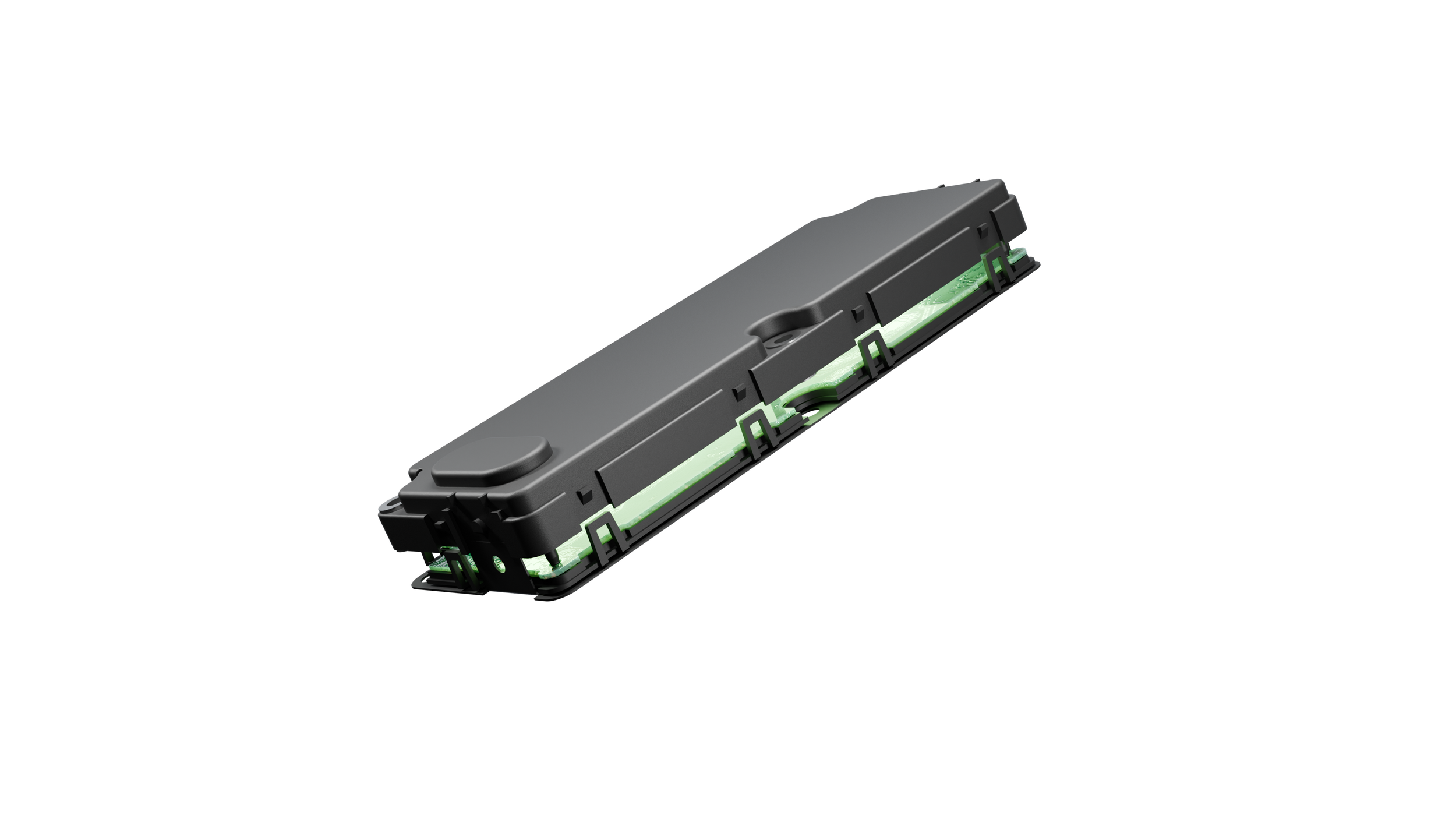

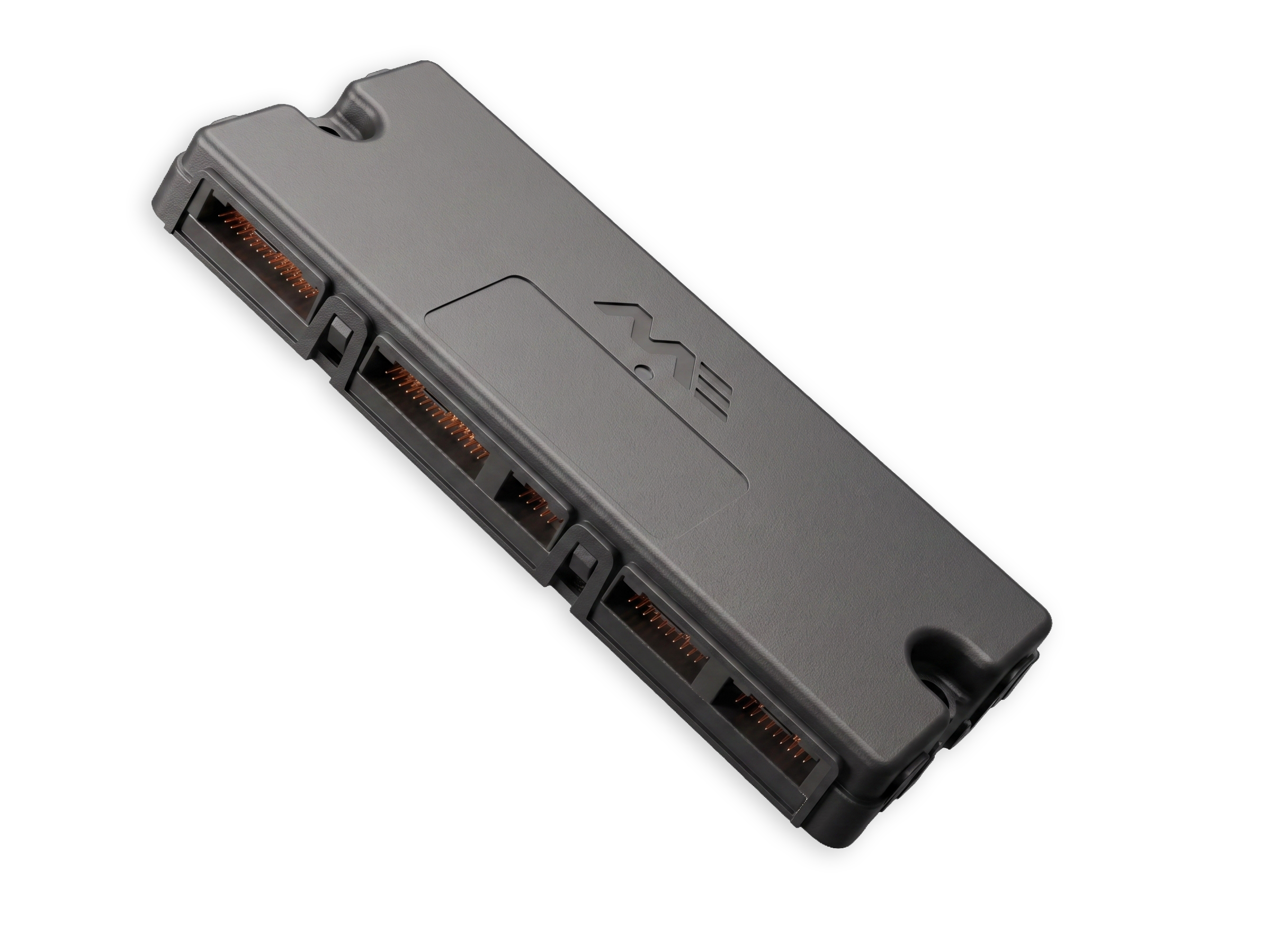

Picture of the SBS Core Battery Management System of Munich Electrification

SBS CORE INTEGRATION ADVANTAGES

Side-Mounted Connectors

Distributed harness weight, vibration-resistant

A gear Icon

Flexible Shunt Placement

Optimal busbar position, ±1,000 A range

Circle with an exclamation mark icon, indicating attention or information

ASIL B Thermal Event Detection

Integrated sensing with wake-on-thermal-event

Icon with two arrows pointing up and down separated by a horizontal line, representing easyness and minimazation

Compact Form Factor

IP5K2 enclosure, any mounting orientation

KEY FEATURES

DESIGNED FOR INTEGRATION

The SBS Core delivers core BMS functionality in a cost-optimized, small-footprint package without compromising on safety or performance.

Line with a gradient from orange to blue, used as a graphic and visual divider

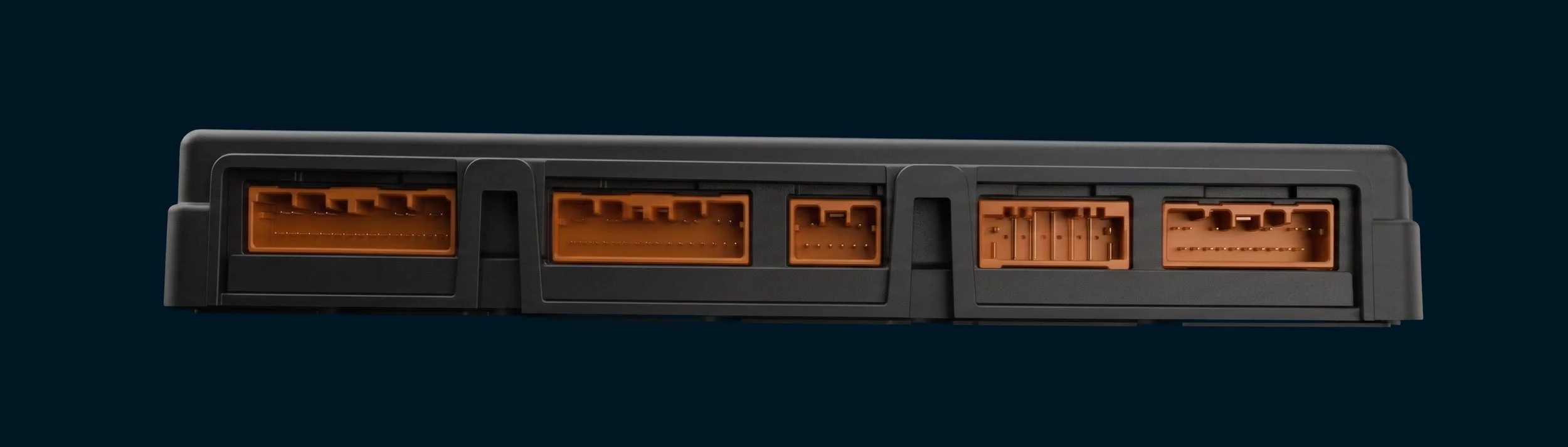

SIDE-MOUNTED CONNECTORS

Horizontal connector orientation distributes harness weight and enables rigid, vibration-resistant connections. The compact form factor matches typical cell height, allowing standing mounting directly next to the cells. IP5K2 rated enclosure.

Icon of contactors symbolizing a horiztontal connector orientation to ensure a compact form of the battery management system.

FLEXIBLE CURRENT SENSING

External shunt architecture lets the pack designer place the current sensor optimally on the busbar. Compatible with dual-alloy shunt for redundant measurement up to ±1,000 A.

Icon of gears, symbolizing the flexible current sensor options because of an external shunt architecture.

ASIL B THERMAL EVENT DETECTION

Integrated thermal event detection achieves ASIL B without external sensor modules. Wake-on-thermal-event capability detects critical conditions even from sleep mode, enabling immediate system response.

Icon of an exclamation mark in a circle, symbolizing an integrated thermal event detection to guarantee an immediate system response.

SOFTWARE & PLATFORM

BARCELONA PLATFORM

The SBS Core is part of Munich Electrification's 3rd-generation Barcelona BMS platform, sharing a common hardware architecture and software stack with SBS High, SBS Multistring, and SBS Stationary.

All four Barcelona variants run the identical SBS Software Platform. One software image supports every variant, switchable at runtime via the Configuration Framework. This means SBS Core benefits from the same validated, ASIL D ready codebase with 14-day release cadence.

The platform is compatible with ME's CMBXX cell monitoring board family, supporting 6 to 64+ cells per board. SBS Core offers 1–2 isoSPI channels in bus or ring topology, enabling diverse cell monitoring architectures.

Line with a gradient from orange to blue, used as a graphic and visual divider

  • ONE BINARY, ALL VARIANTS

    Same software image runs on SBS Core, SBS High, BMDU, and SBS Stationary. Configuration Framework switches behavior at runtime.

  • 14-DAY RELEASES

    Continuous integration with bi-weekly validated releases. Faster iteration, faster time to production.

  • CMBXX COMPATIBILITY

    Full compatibility with ME's cell monitoring board family. 6–64+ cells per CMB, scalable to any pack size.

BARCELONA PLATFORM FAMILY

SBS CORE

Compact controller, side connectors, external shunt

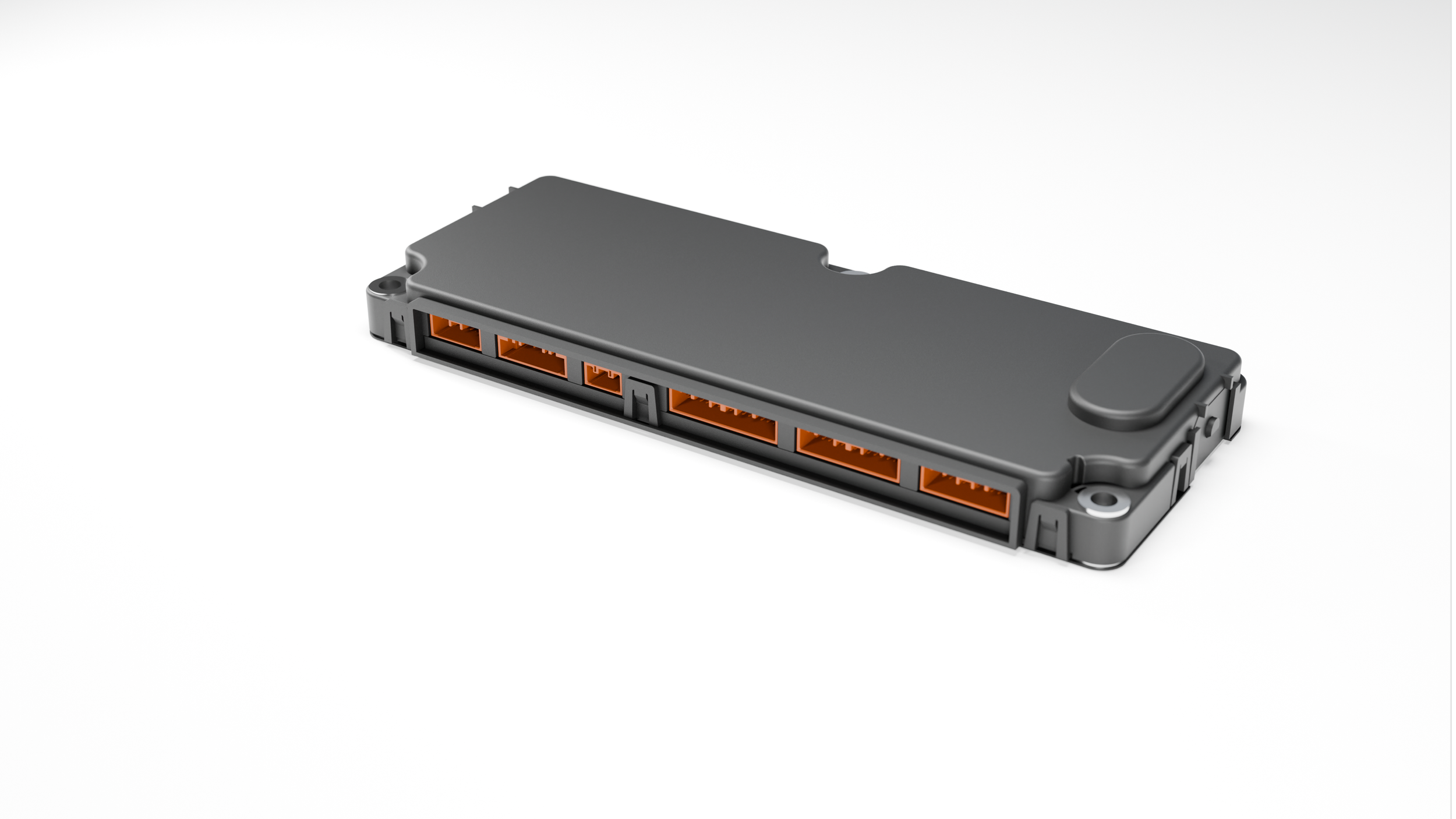

Picture of the SBS Core Battery Management System of Munich Electrification

SBS HIGH

Full-featured controller, integrated shunt, 7 contactor drivers

Picture of the SBS High Smart Battery Management System of Munich Electrification

BMDU

Integrated controller + power distribution with circuit breaker

Picture of the BMDU, the Battery Management Disconnect Unit of Munich Electrification

SBS STATIONARY

1500V BESS-optimized with Ethernet

Picture of the SBS for BESS for up to 1500V applications of Munich Electrification

SHARED SOFTWARE: All four variants run the same C++ software stack. One codebase, one safety case, one release cadence. All variants support multistring configurations.

System Icon, with a plus in the upper right corner, symbolizing the adaptability of Munich Electrifications BMS and Software solutions
Parameter Value
MCU Automotive multicore processor (3 cores @ 300 MHz)
Contactor Drivers 6 (3 A peak, 1 A continuous)
Pyro Driver 1x with backup capacitor
HV Measurements 6 channels (2 pack, 2 DC link, 2 diagnostic)
HV Range −500 to +1,000 V
Current Sensing External sensor, ±1,000 A, ±0.5% accuracy
Thermal Event ASIL B integrated detection with wake-on-thermal-event
CAN 3x CAN FD (up to 5 Mbit/s)
Isolation Monitoring Passive, 0–100,000 Ohm/V
Operating Temp −40 to +85 °C
Sleep Current 500 µA
Enclosure Rating IP5K2
EMC CISPR Level 5
Functional Safety (ISO 26262)
Cell monitoring ASIL D
Isolation monitoring ASIL B
Contactor control ASIL B
Thermal event detection — integrated, wake-on-thermal-event ASIL B
Cybersecurity (ISO 21434)
  • Secure Boot
  • Secure Update
  • Secure Access
  • HSM
  • JTAG Lock

TECHNICAL SPECIFICATIONS

FULL SPEC SHEET

Line with a gradient from orange to blue, used as a graphic and visual divider

APPLICATIONS

BUILD FOR DEMANDING ENVIRONMENTS

Line with a gradient from orange to blue, used as a graphic and visual divider
Truck Icon symbolizing the BMS solutions for transportation and industrial applications of Munich Electrification

HEAVY-DUTY TRUCKS

Compact form factor and side-mounted connectors meet demanding vibration profiles. External shunt allows optimal busbar placement for high-current packs.

System Icon, with a plus in the upper right corner, symbolizing the adaptability of Munich Electrifications BMS and Software solutions

COMMERCIAL VEHICLES

Buses, construction equipment, and delivery vehicles benefit from integrated sensors that reduce component count and simplify pack assembly.

Construction vehicle Icon symbolizing the BMS solutions for transportation and industrial applications of Munich Electrification

MODULAR PACK ARCHITECTURES

Flexible current sensor placement and 1–2x isoSPI (bus or ring) support diverse pack topologies and multi-module configurations.

READY FOR A COMPACT, INTEGRATED BMS?

Get in touch with our team to learn how SBS Core fits your application.
