SBS HIGH

Full-featured BMS controller with integrated dual shunt, 7 contactor drivers, 8 HV measurement channels, and pyro-fuse protection for complex modular architectures.

REQUEST SPECIFICATION

DESIGN PHILOSOPHY

BUILT FOR COMPLEX ARCHITECTURES

When battery packs need multiple HV connections, complex switching strategies, and precise integrated current measurement, SBS High delivers. 7 contactor drivers, 8 HV channels, and an integrated 35 µΩ dual shunt give system designers the full peripheral set for demanding modular architectures.

The highest peripheral count in the Barcelona family means fewer external components, simplified wiring, and a single controller that handles current sensing, contactor management, and HV monitoring without compromise.

SBS HIGH INTEGRATION ADVANTAGES

Integrated Dual Shunt

35 µΩ, ±1,000 A, ±0.5 % accuracy

Icon of a Battery with a calculation graph in it, symbolizing the adjustment possibilites of Munich Electrifications battery management systems

7 Contactor Drivers

6 normal + 1 PWM, 12 V and 24 V

Icon of the wiring connections of a circuit board

8 HV Measurement Channels

2 pack + 6 generic, ±1,000 V

Icon of a battery with a high voltage lightning in the middle

Pyro-Fuse Protection

Backup capacitor, up to 15,000 A detection

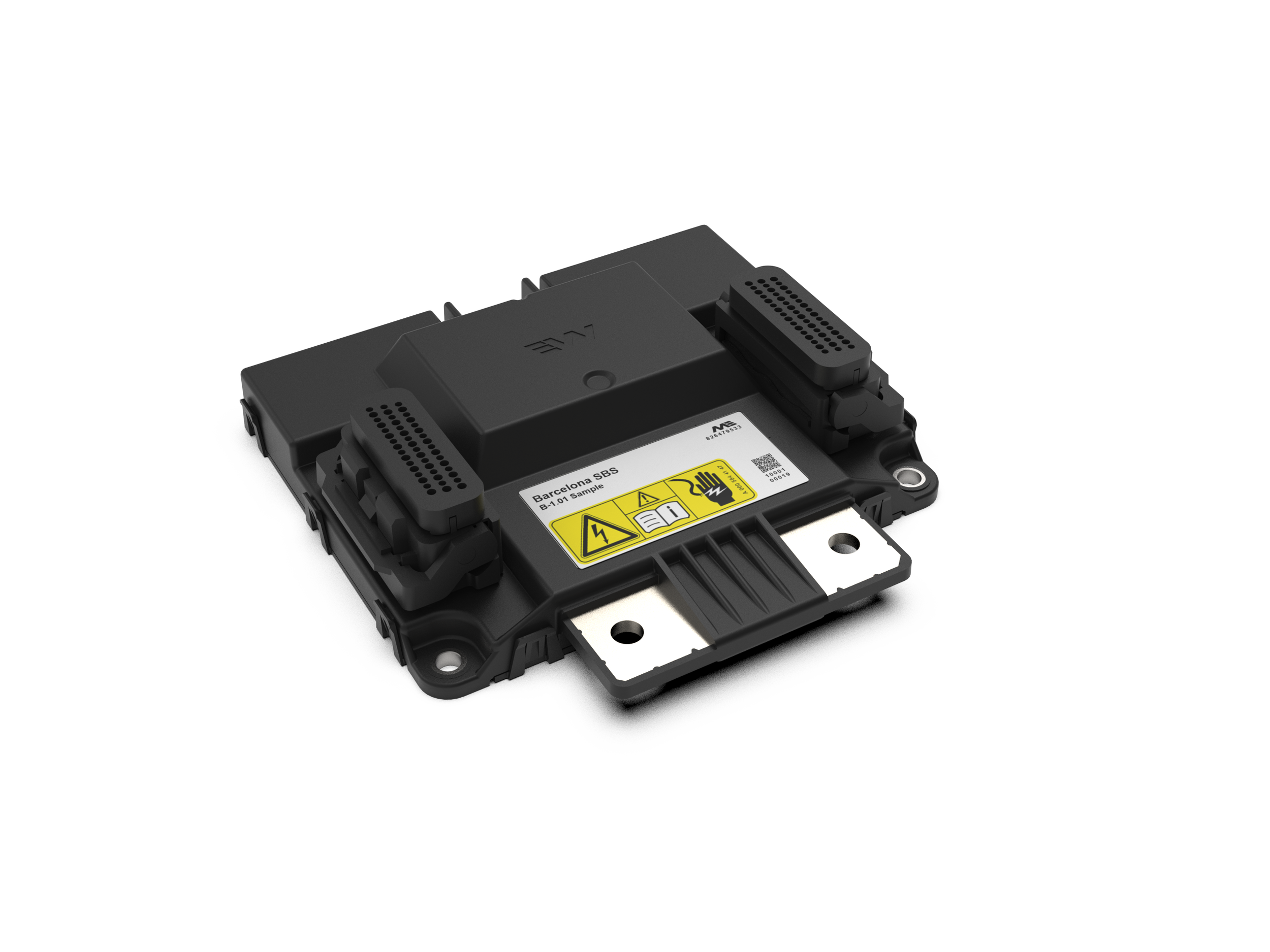

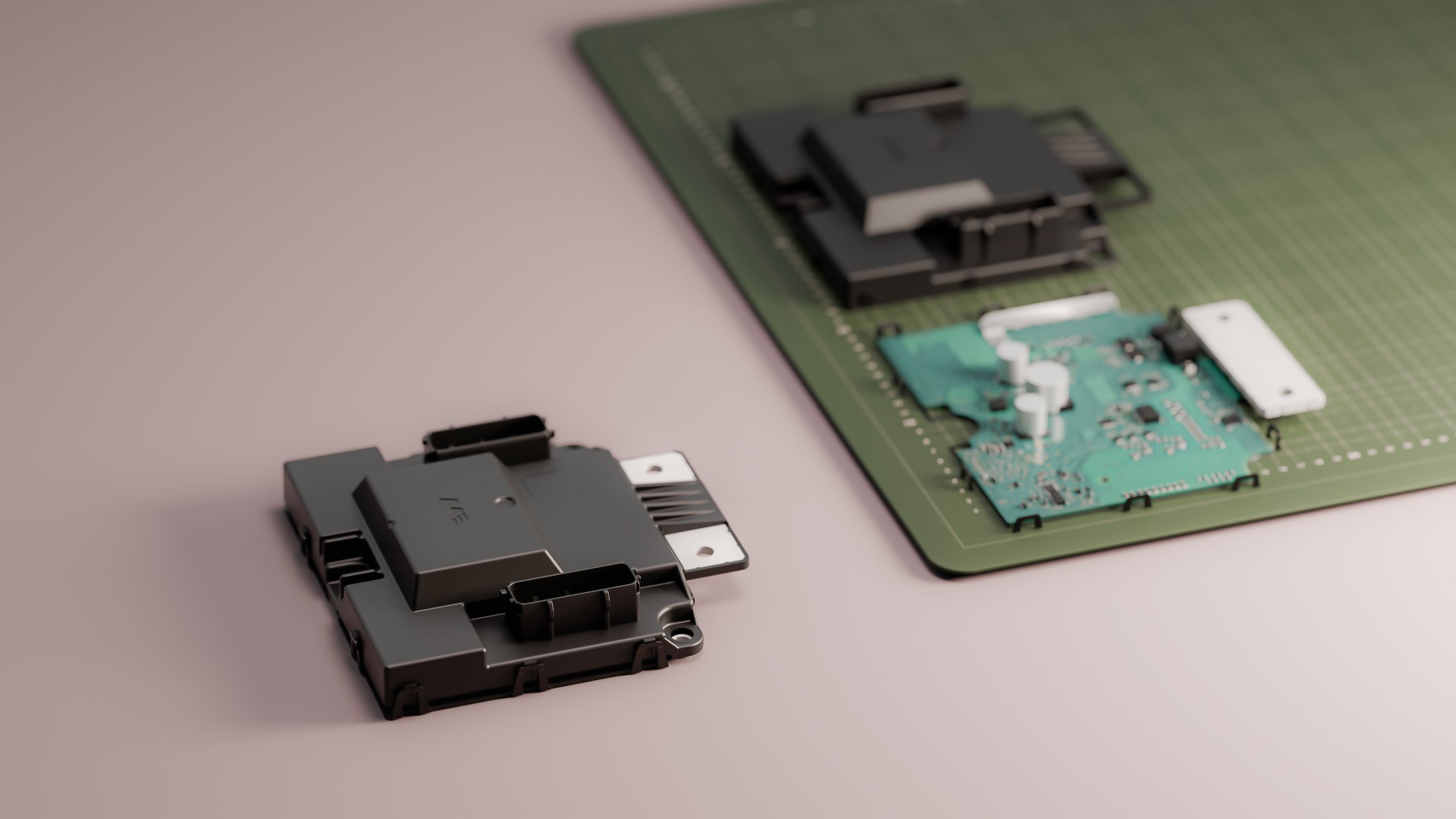

The picture shows the SBS High Battery Management System of Munich Electrifcation, built for demanding architectures like heavy-duty trucks, buses and transit or modular pack architectures.

Icon of a shield with acheckmark, symbolizing Munich Electrifications commitment to save and secure engineering

KEY FEATURES

FULL PERIPHAL SET

The SBS High delivers the highest peripheral count in the Barcelona family with integrated current measurement, eliminating external sensors and simplifying system design.

INTEDGRATED DUAL SHUNT

Built-in 35 µΩ dual shunt measures ±1,000 A at ±0.5% accuracy. Peak 500 A for 60 seconds. No external current sensor needed.

Simplified white icon of a webcam or camera with a lens on top and a base.

HIGH PERIPHAL COUNT

7 contactor drivers (6 normal + 1 PWM). 8 HV channels across ±1,000 V. 6 sensor inputs, KL15 ignition input, 12V sensor supply.

Battery warning icon with a lightning bolt inside a battery outline.

PYRO-FUSE PROTECTION

Dedicated pyro driver with backup capacitor for fast short-circuit reaction even during power loss. Detection up to 15,000 A.

SOFTWARE & PLATFORM

BARCELONA PLATFORM

SBS High is the full-featured member of ME's 3rd-generation Barcelona BMS platform, sharing a common architecture and software stack with SBS Core, BMDU, and SBS Stationary. All SBS controllers support multistring configurations.

All four Barcelona variants run the identical SBS Software Platform. One software image supports every variant, switchable at runtime via the Configuration Framework. This means SBS High benefits from the same validated, ASIL D ready codebase with 14-day release cadence.

The platform is compatible with ME's CMBXX cell monitoring board family, supporting 6 to 64+ cells per board. SBS High connects via isoSPI in bus topology for reliable cell monitoring communication.

ONE BINARY, ALL VARIANTS
Same software image runs on SBS Core, SBS High, BMDU, and SBS Stationary. Configuration Framework switches behavior at runtime.
14-DAY RELEASES
Continuous integration with bi-weekly validated releases. Faster iteration, faster time to production.
CMBXX COMPATIBILITY
Full compatibility with ME's cell monitoring board family. 6–64+ cells per CMB, scalable to any pack size.

BARCELONA PLATFORM FAMILY

SBS CORE

Compact controller, side connectors, external shunt

SBS HIGH

Full-featured controller, integrated shunt, 7 contactor drivers

BMDU

Integrated controller + power distribution with circuit breaker

Close-up of the Battery Management Disconnect Unit of Munich Electrification

SBS STATIONARY

1500 V BESS-optimized with Ethernet

Picture of the Energy Storage Battery Management Unit of Munich Electrification for BESS

SHARED SOFTWARE: All four variants run the same C++ software stack. One codebase, one safety case, one release cadence. All variants support multistring configurations.

Icon of a system with a plus at the upper right corner, symbolizing the configuration possibilities of Munich Electrification



                        Parameter
                        Value


                MCUAutomotive multicore processor (3 cores @ 300 MHz)
Contactor Drivers7 (6x normal + 1x PWM); 12V and 24V; 3.5 A peak, 1 A continuous
Pyro Driver1x with backup capacitor
Short-Circuit DetectionUp to 15,000 A (±275 A)
HV Measurements8 channels (2 pack + 6 generic)
HV Range−1,000 to +1,000 V
HV Accuracy±1% (above 500 V), ±5 V (below 500 V)
Current SensingIntegrated 35 µΩ dual shunt, ±1,000 A, ±0.5% accuracy
Peak Current500 A for 60 seconds
Isolation MonitoringPassive, 0–100,000 Ohm/V, >5 MΩ
HVIL1x (12 mA constant current)
CAN3x CAN FD (up to 5 Mbit/s)
isoSPI1x (2 Mbps, bus topology)
Sensor Inputs3x 5V (no pull-up) + 3x 5V (10 kΩ pull-up)
Sensor Supply12V output (1 A)
Operating Temp−40 to +85 °C
Power SupplyKL30 6–36V, KL30C 6–36V, KL15
Sleep Current<200 µA



Functional Safety (ISO 26262)
Cell monitoring ASIL D
Isolation monitoring ASIL B
Contactor status / control ASIL B
Thermal event detection — ASIL rated (requires external sensor) ASIL Rated
Cybersecurity (ISO 21434)
Secure Boot
Secure Update
Secure Access
HSM (ECC256 + SHA2)
JTAG Lock

Parameter	Value
MCU	Automotive multicore processor (3 cores @ 300 MHz)
Contactor Drivers	7 (6x normal + 1x PWM); 12V and 24V; 3.5 A peak, 1 A continuous
Pyro Driver	1x with backup capacitor
Short-Circuit Detection	Up to 15,000 A (±275 A)
HV Measurements	8 channels (2 pack + 6 generic)
HV Range	−1,000 to +1,000 V
HV Accuracy	±1% (above 500 V), ±5 V (below 500 V)
Current Sensing	Integrated 35 µΩ dual shunt, ±1,000 A, ±0.5% accuracy
Peak Current	500 A for 60 seconds
Isolation Monitoring	Passive, 0–100,000 Ohm/V, >5 MΩ
HVIL	1x (12 mA constant current)
CAN	3x CAN FD (up to 5 Mbit/s)
isoSPI	1x (2 Mbps, bus topology)
Sensor Inputs	3x 5V (no pull-up) + 3x 5V (10 kΩ pull-up)
Sensor Supply	12V output (1 A)
Operating Temp	−40 to +85 °C
Power Supply	KL30 6–36V, KL30C 6–36V, KL15
Sleep Current	<200 µA

TECHNICAL SPECIFICATIONS

FULL SPEC SHEET

APPLICATIONS

BUILD FOR DEMANDING ARCHITECURES

Icon of a shopping cart with a segmented design in blue, orange, and beige colors.

HEAVY-DUTY TRUCKS

7 contactor drivers and 8 HV channels support complex switching in heavy-duty electric trucks. Integrated dual shunt eliminates external current sensors.

BUSES AND TRANSIT

Multiple HV measurement points and granular contactor control for urban transit and intercity bus applications.

Abstract digital art with overlapping blue and orange geometric shapes

MODULAR PACK ARCHITECTURES

High peripheral count supports architectures requiring multiple HV connections, complex switching, and integrated current measurement.

READY FOR FULL-FEATURED BMS CONTROL?

Get in touch with our team to learn how SBS High fits your architecture.
