BATTERY MANAGMENT SYSTEMS

SBS STATIONARY

Purpose-built 1500V BMS controller for utility-scale energy storage. Ethernet connectivity, extreme parallel string support, and always-on operation for grid-grade battery management.

REQUEST SPECIFICATION

DESIGN PHILOSOPHY

DESIGNED FOR THE GRID

The SBS Stationary is not a repurposed automotive BMS. Designed from the ground up for 1500V BESS with extreme parallel string support, always-on duty cycles, and grid-grade communication.

HV-based voltage measurement for multi-string isolation and Ethernet connectivity for modern energy management systems.

SBS STATIONARY INTEGRATION ADVANTAGES

1500 V NATIVE DESIGN

6000 V withstand, HV-based voltage measurement

Lightning icon, representing high voltage

EXTREME PARALLEL SUPPORT

>100 MΩ leakage isolation, up to 100 strings

GRID-GRADE COMMUNICATION

Dual-pair 100BASE-TX Ethernet + 3x CAN FD

ALWAYS-ON OPERATION

Low-power standby, optimized for grid duty cycles

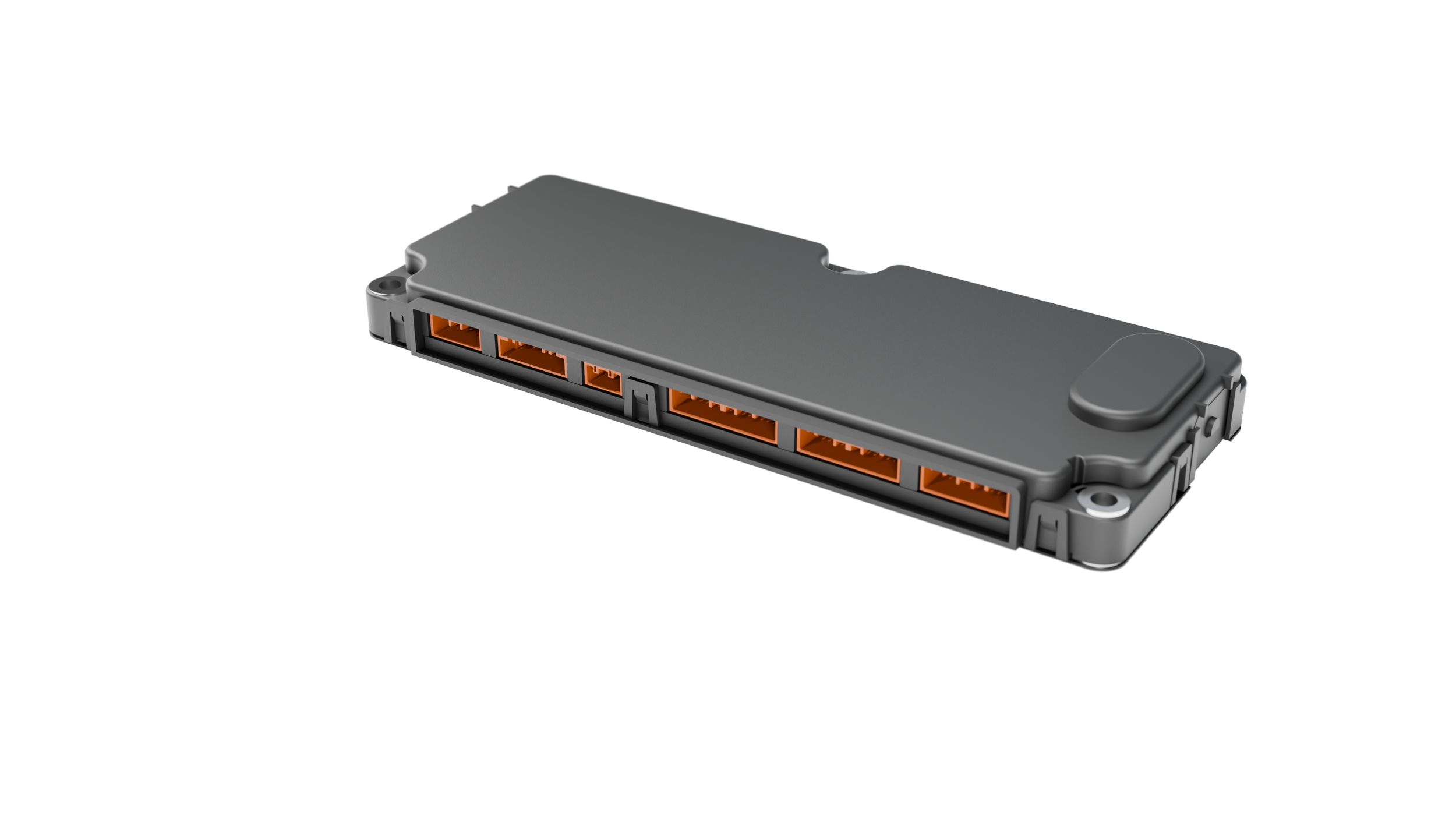

Picture of the SBS for BESS for up to 1500V applications of Munich Electrification

Icon of a clock, representing Munich Electrifications speed in development and fast time-to-market

KEY FEATURES

PURPOSE-BUILT FOR BESS

The SBS Stationary delivers grid-grade battery management with 1500 V native design, Ethernet connectivity, and always-on optimization for utility-scale energy storage.

1500 V PURPOSE-BUILT

1500 V rating with 6000 V withstand. HV-based voltage measurement (not GND-based). >100 MΩ leakage isolation supports up to 100 parallel strings.

ETHERNET-CONNECTED

Dual-pair 100BASE-TX Ethernet for EMS integration. 3x CAN FD at 5 Mbit/s. Future single-pair 100BASE-T1 support planned.

ALWAYS-ON OPTIMIZATION

Low-power standby for idle grid periods. Optimized for always-on duty cycles in stationary energy storage deployments.

SOFTWARE & PLATFORM

BARCELONA PLATFORM

The SBS Stationary is the grid-optimized member of ME's 3rd-generation Barcelona BMS platform, sharing a common architecture and software stack with SBS Core, SBS High, and BMDU. All SBS controllers support multistring configurations.

All four Barcelona variants run the identical SBS Software Platform. One software image supports every variant, switchable at runtime via the Configuration Framework. This means SBS Core benefits from the same validated, ASIL D ready codebase with 14-day release cadence.

Compatible with CMBXX cell monitoring board family, supporting arrays of over 500 cells per controller over 1500V-isolated isoSPI.

ONE BINARY, ALL VARIANTS
Same software image runs on SBS Core, SBS High, BMDU, and SBS Stationary. Configuration Framework switches behavior at runtime.
14-DAY RELEASES
Continuous integration with bi-weekly validated releases. Faster iteration, faster time to production.
INDUSTRIAL CERTIFICATION PATH
ISO 26262 + IEC 61508 functional safety. EU Cyber Resilience Act (CRA) compliance planned for 2027.

BARCELONA PLATFORM FAMILY

SBS CORE

Compact controller, side connectors, external shunt

SBS HIGH

Full-featured controller, integrated shunt, 7 contactor drivers

BMDU

Integrated controller + power distribution with circuit breaker

SBS STATIONARY

1500V BESS-optimized with Ethernet

SHARED SOFTWARE: All four variants run the same C++ software stack. One codebase, one safety case, one release cadence. All variants support multistring configurations.

System Icon, with a plus in the upper right corner, symbolizing the adaptability of Munich Electrifications BMS and Software solutions


                        Parameter
                        Value

                        MCU
                        Automotive multicore processor (3 cores @ 300 MHz)

                        Voltage Rating
                        1500V (6000V withstand)

                        HV Measurements
                        8 channels (6 generic + 2 pack), HV-based sensing

                        Current Sensing
                        External CAN/Analog shunt, ±1,000 A

                        Isolation Monitoring
                        Passive, >100 MΩ leakage isolation

                        CAN
                        3x CAN FD (up to 5 Mbit/s)

                        Ethernet
                        100BASE-TX dual-pair

                        isoSPI
                        1500V isolation for multi-string support

                        Max Cell Array
                        >500 cells

                        Operating Temp
                        −40 to +85 °C

                        Standby Mode
                        Low-power for idle grid periods

Functional Safety
Cell monitoring ASIL D
Isolation monitoring ASIL B
IEC 61508 certification path Industrial
ISO 21434 cybersecurity Certified
Cybersecurity
Secure Boot
Secure Update
Secure Access
HSM
JTAG Lock
EU CRA Compliance (Planned 2027)

Parameter	Value
MCU	Automotive multicore processor (3 cores @ 300 MHz)
Voltage Rating	1500V (6000V withstand)
HV Measurements	8 channels (6 generic + 2 pack), HV-based sensing
Current Sensing	External CAN/Analog shunt, ±1,000 A
Isolation Monitoring	Passive, >100 MΩ leakage isolation
CAN	3x CAN FD (up to 5 Mbit/s)
Ethernet	100BASE-TX dual-pair
isoSPI	1500V isolation for multi-string support
Max Cell Array	>500 cells
Operating Temp	−40 to +85 °C
Standby Mode	Low-power for idle grid periods

TECHNICAL SPECIFICATIONS

FULL SPEC SHEET

APPLICATIONS

BUILD FOR ENERGY STORAGE

UTILITY-SCALE BESS

Front-of-meter installations for grid stability, frequency regulation, renewable integration. 1500 V with up to 100 parallel strings scales to any deployment.

Stylized bar chart icon with four vertical bars in orange, purple, and blue shades.

COMMERCIAL AND INDUSTRIAL STORAGE

Behind-the-meter for peak shaving, demand response, backup power. Ethernet integrates directly with building/energy management systems.

CONTAINER-BASED STORAGE

Purpose-built for containerized deployments with always-on operation and low-power standby. Over 500 cells per controller for maximum energy density.

READY FOR GRID-GRADE BATTERY MANAGEMENT?

Get in touch with our team to learn how SBS Stationary fits your energy storage deployment.
